Network Namespace on Linux

Introduction

My personal learning note about network namespace concept on linux, one of the fundamental building blocks that powering software container technology nowadays.

Glossary

Namespace: a feature of the Linux kernel that partitions kernel resources such that one set of processes sees one set of resources while another set of processes sees a different set of resources (wikipedia)

Host: In this article, host is a computer device that we use

What is namespace on linux?

In linux, there are 8 kinds on namespaces that available since kernel 5.6. I'll try to summarize 3 most popular namespace kind as follows:

  1. PID: A process identifier, that happen on namespace level. It provides processes with independent PID from other namespaces.
  2. User ID: Similar with PID above, this feature provides us to grant a granular access control for each running processes. For example, An user with limited access to process that running on namespace A, can't access any process on another namespaces.
  3. Network namespace: provides an isolate networking stack (routing, IP address, etc) for each namespaces.

Labs

Let's begin the labs work to explore the feature available on network namespace.

In this labs, we'll try to run a simple webserver inside a network namespace and make it accessible via host network.

  1. Setup network namespace

First, let's create a new network namespace by execute these command:

~$ ip netns add <network-namespace-name>

In this case, i'll create new network namespace called ns_rifky

morifky@morifky-GF63-Thin-9RCX:~$ ip netns list

ns_rifky

Next, let's enabling the default loopback inside the created network namespace above

~$ ip netns exec ns_rifky ip link set dev lo up
  1. Run web server

Next, we will try to run a simple webserver inside the network namespace we've create above.

The following command will create a simple webserver provided by python3 package.

~$ ip netns exec ns_rifky python3 -m http.server 4000
Serving HTTP on 0.0.0.0 port 4000 (http://0.0.0.0:4000/) …

Open a new tab in our terminal, and execute these command:

~$ sudo ip netns exec ns_rifky curl localhost:4000
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
<html>

voila! we've successfully running and accessing the webserver hosted inside ns_rifky 🥳

  1. Setup virtual ethernet and virtual IP addresses

So far we've successfully setup a webserver inside a dedicated ns_rifky network namespace and accessing it via its internal network.

However, we've got some trouble when try to access it via host network.

~$ curl localhost:4000
curl: (7) Failed to connect to localhost port 4000: Connection refused

let's do another steps to rectify this problem.

Our goals here is to make both host and the network namespace (ns_rifky) can communicate and talk to each other. So how to accomplish this goals? meet virtual ethernet for the rescue.

Imagine virtual ethernet is like a cable that can bridging the communication between host network and network namespace.

Here, we need to setup a pair of virtual ethernet; one will located inside host network, and the another end will located inside network namespace.

For this labs, we will create a pair of virtual ethernet

  • veth_rifky

  • veth_ns_rifky (peer)

~$ ip link add dev veth_rifky type veth peer name veth_ns_rifky
~$ ip link list
9: veth_ns_rifky@veth_rifky: <BROADCAST,MULTICAST,M-DOWN> mtu 1500 qdisc noop state DOWN mode DEFAULT group default qlen 1000
    link/ether 16:27:5a:50:60:5b brd ff:ff:ff:ff:ff:ff
10: veth_rifky@veth_ns_rifky: <BROADCAST,MULTICAST,M-DOWN> mtu 1500 qdisc noop state DOWN mode DEFAULT group default qlen 1000
    link/ether 6e:f6:f3:3c:59:d5 brd ff:ff:ff:ff:ff:ff

Now, we need to change veth_rifky state from DOWN to UP

~$ ip link set dev veth_rifky up

we've successfully run veth_rifky inside the host network.

Next, we need to moved its peer -veth_ns_rifky- onto the network namespace ns_rifky

~$ sudo ip link set veth_ns_rifky netns ns_rifky

Don't forget to also change veth_ns_rifky state from DOWN to UP

~$ ip netns exec ns_rifky ip link set dev veth_ns_rifky up

Last, we need to add some "identifier" for both virtual ethernet.

This will make the packet can be routed to their destination properly.

For this labs we will use these address:

  • ns_rifky = 10.0.0.10/24

  • veth_ns_rifky = 10.0.0.11/24

~$ ip address add 10.0.0.10/24 dev veth_rifky
~$ ip netns exec ns_rifky ip address add 10.0.0.11/24 dev veth_ns_rifky

Now, we can try to re-accessing the webserver via host network, and here's the result

$ curl 10.0.0.11:4000

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">

<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
<title>Directory listing for /</title>

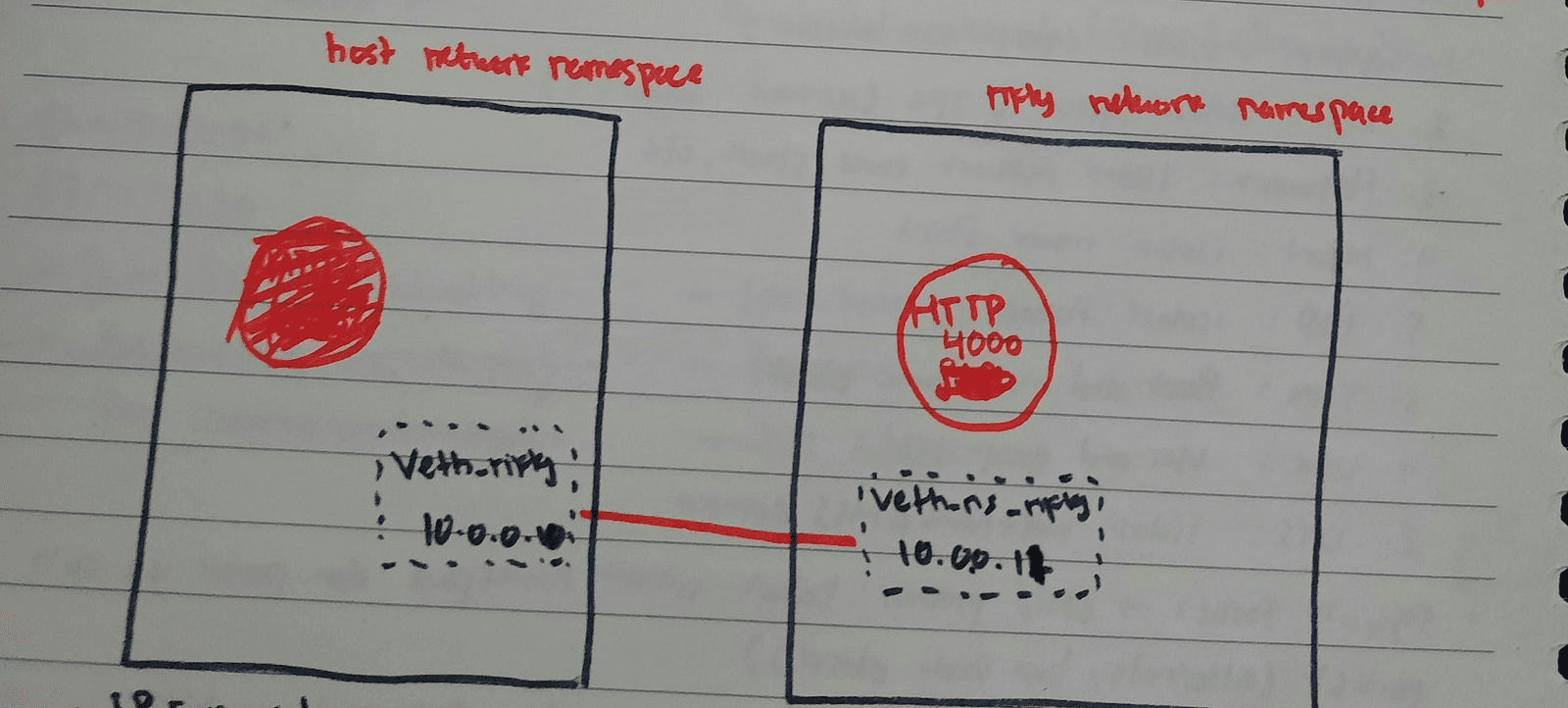

Congrats! we've finally make both host and our dedicated network namespace can communicate and talk to each other. Below i also attaching an image to visualize the system we've created in this labs

Drawing book
